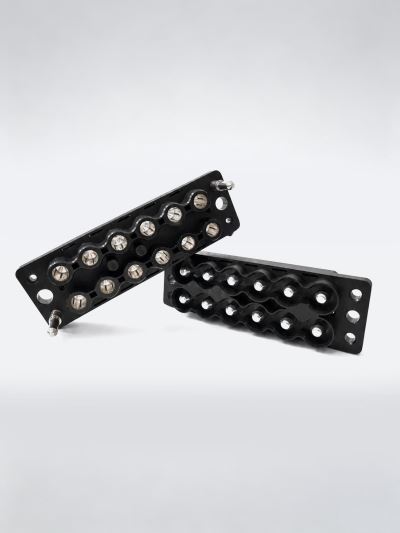

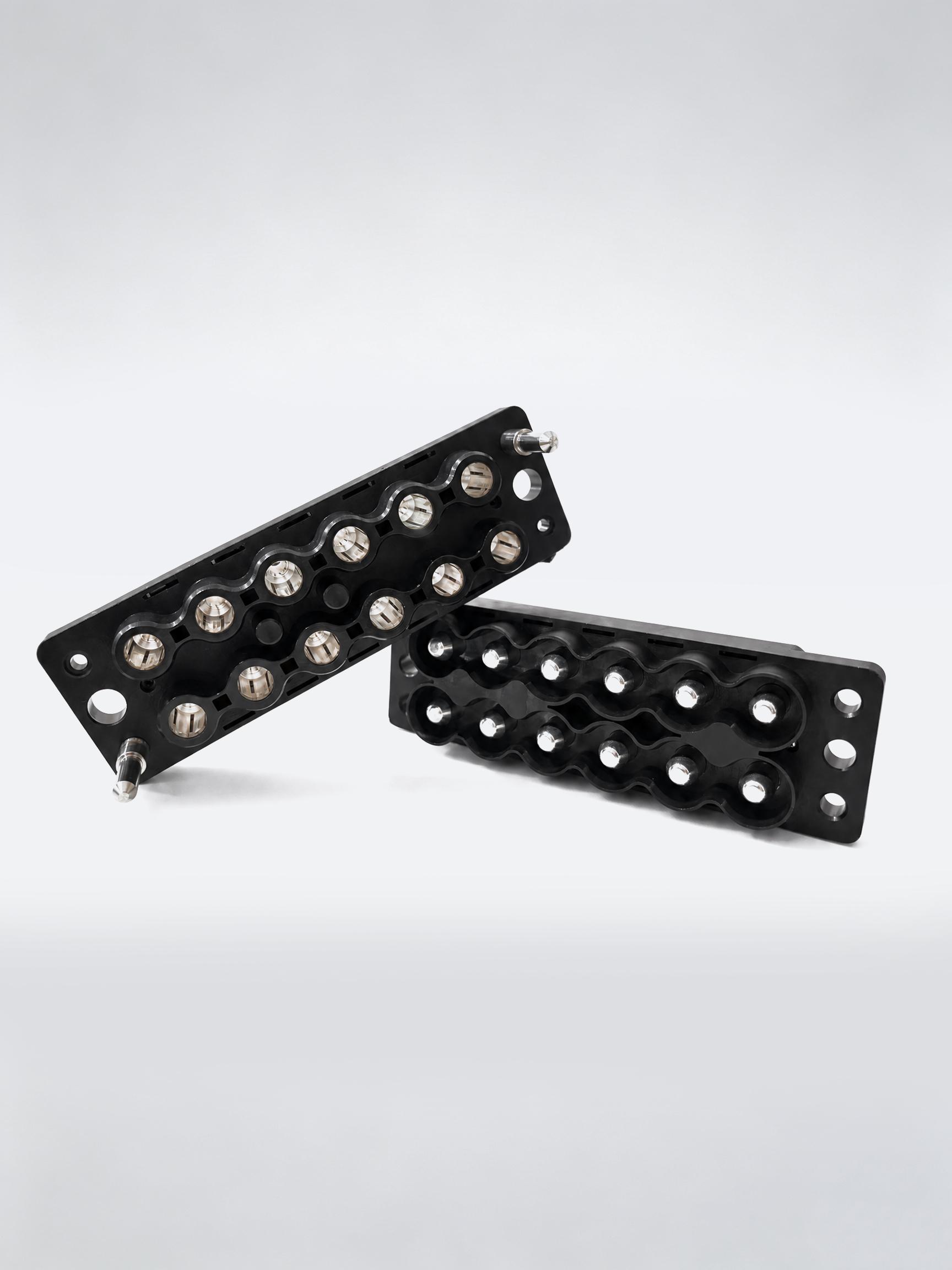

▶  12 Pins

▶  Rated Current: 230A(UL)/200A(CUL)

▶ Contact Resistance: ≤0.4mΩ

▶ Insulation Resistance: ≥100MΩ DC500V

▶ Dielectric Withstand Voltage: 2500V AC

▶  Mating Cycles: ≤500cycles

▶ Contact Separation Force (Single Pin): 8～15N

▶Overall Separation Force: ≤200N

WZ10020187-ZZ

WZ10010372-ZZ
