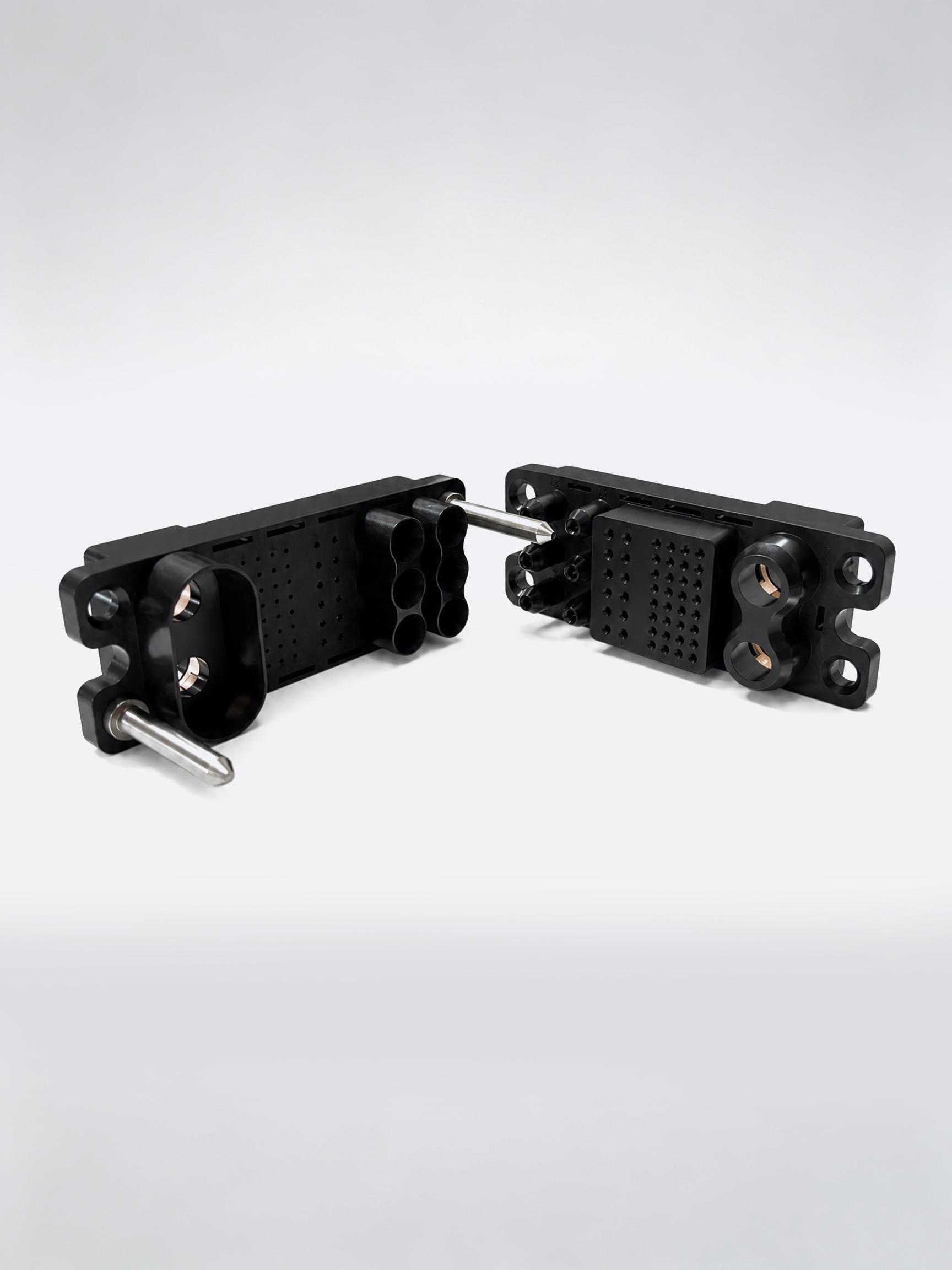

▶  52 Pins

▶  Rated Current: 0#: 150A，12#: 35A，16#: 15A，20#: 5A

▶ Contact Resistance: 0#: ≤0.4mΩ，12#: ≤1mΩ，16#: ≤2.5mΩ，20#: ≤5mΩ

▶ Insulation Resistance: ≥500MΩ DC500V

▶ Dielectric Withstand Voltage: 0#:3000V，12#:1500V，16#:1000V，20#:1000V

▶  Mating Cycles: ≤500cycles

▶ Contact Separation Force (Single Pin):0#: 8～15N，12#: 2～4N，16#: 0.8～2N，20#: 0.6～1.2N

WZ10010148-ZZ

WZ10060070-ZZ
