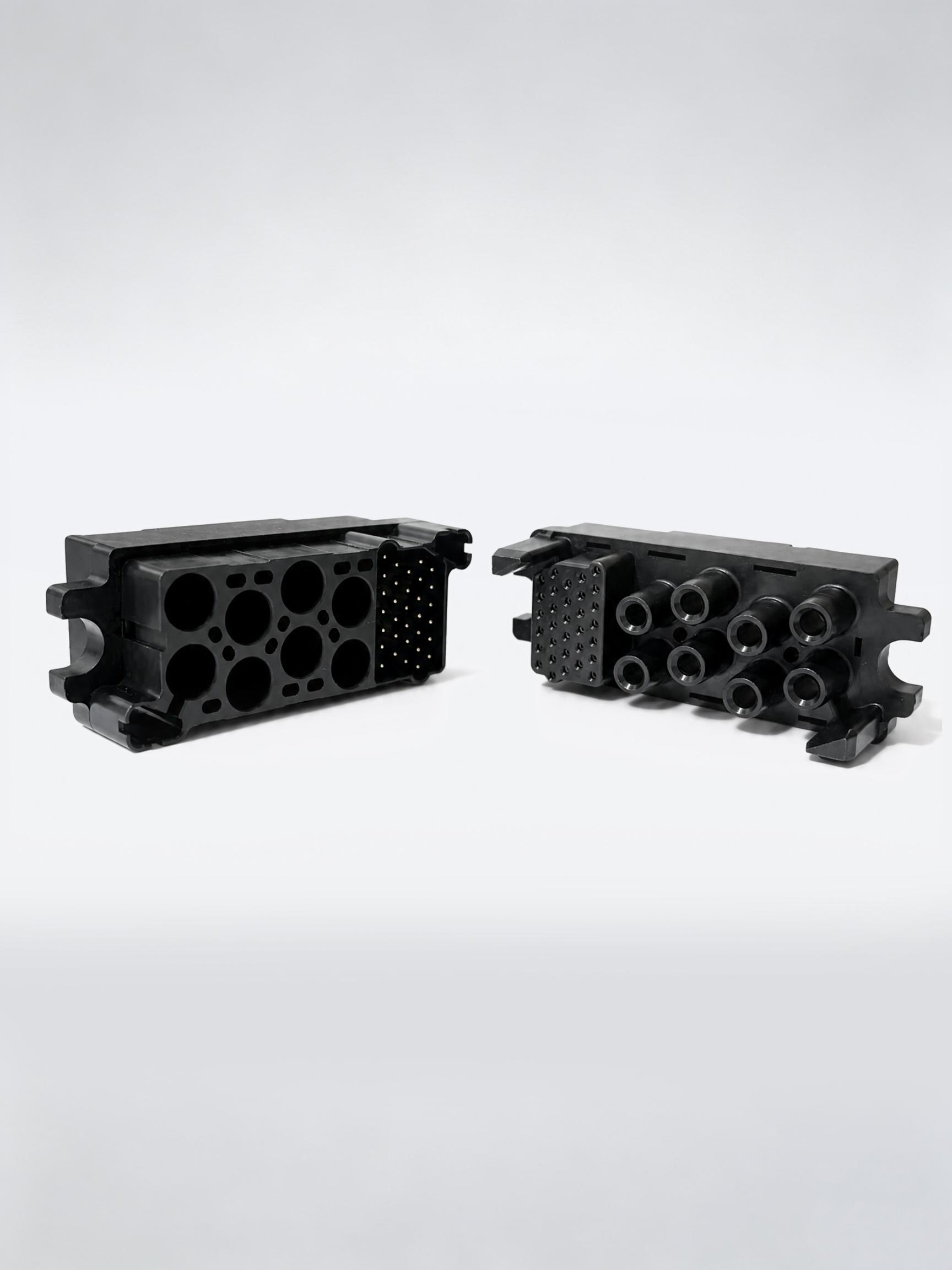

▶  8+32 Pins

▶  Rated Current: Power Pin:105A,Signal Pin: 5A

▶ Contact Resistance: Power Pin: ≤0.75mΩ，Signal Pin:≤5mΩ

▶ Insulation Resistance: Power Pin≥5000MΩ DC500V，Signal Pin≥20MΩ DC500V

▶ Dielectric Withstand Voltage: Power Pin: 2500V AC，Signal Pin:1000V AC

▶  Mating Cycles: ≤500cycles

▶ Contact Separation Force (Single Pin): Power Pin:3～7N，Signal Pin:0.8～2N

WZ10020199-ZZ

WZ10020202-ZZ
