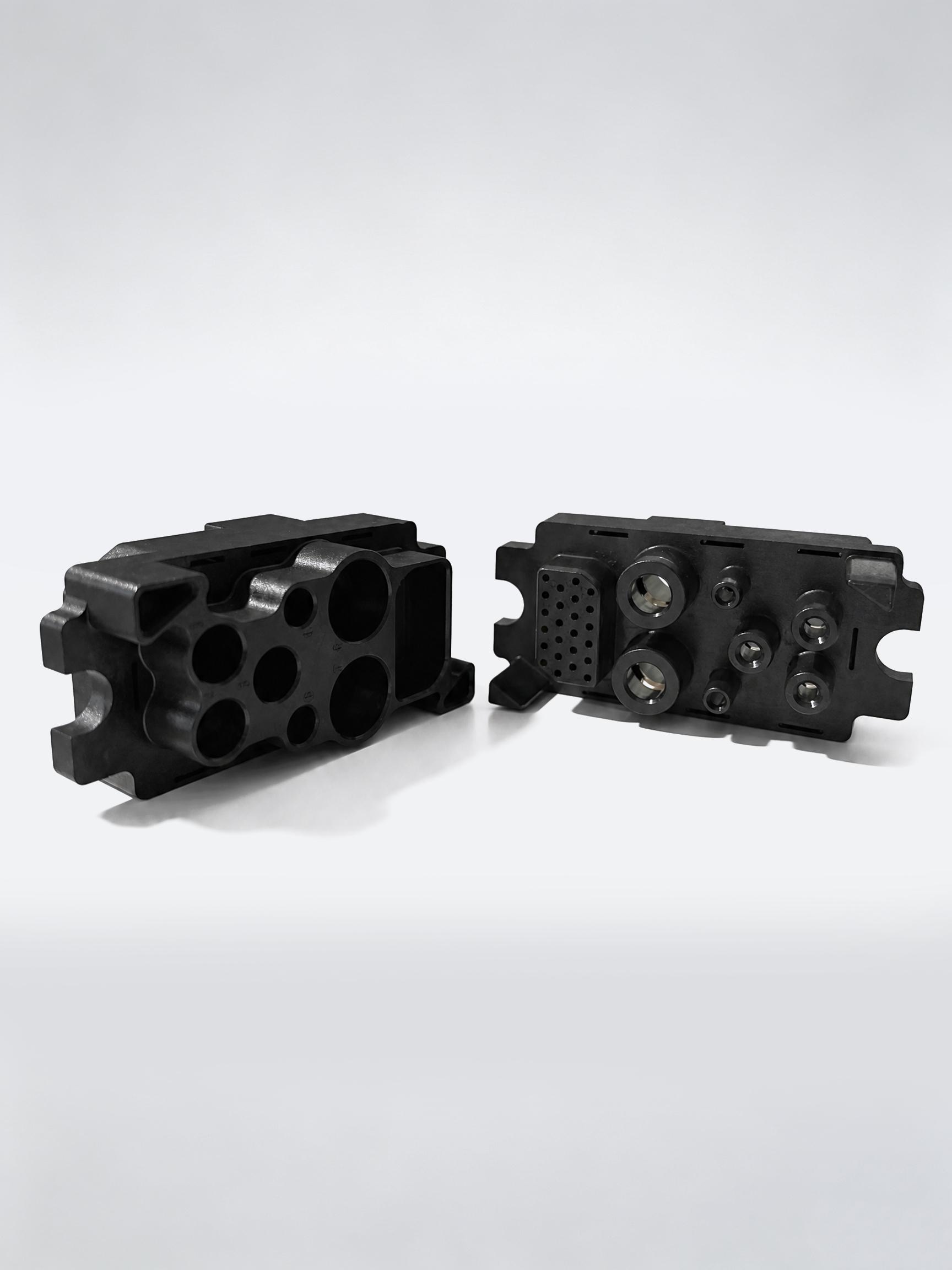

▶  3+2+2+24 Pins

▶  Rated Current: 35mm²: 150A，8#: 105A，12#: 35A，20#: 5A

▶ Contact Resistance: 35mm²: ≤0.5mΩ，8#: ≤0.75mΩ，12#: ≤1mΩ，20#: ≤5mΩ

▶ Insulation Resistance: ≥500MΩ

▶ Dielectric Withstand Voltage: 35mm²: 1500V，8#: 1500V，12#: 1500V，20#: 1000V

▶  Mating Cycles: ≤200cycles

▶ Contact Separation Force (Single Pin): 35mm²: 8～16N，8#: 3～6N，12#: 3～6N，20#: 0.8～2.0N

WZ10020166

WZ10010366
