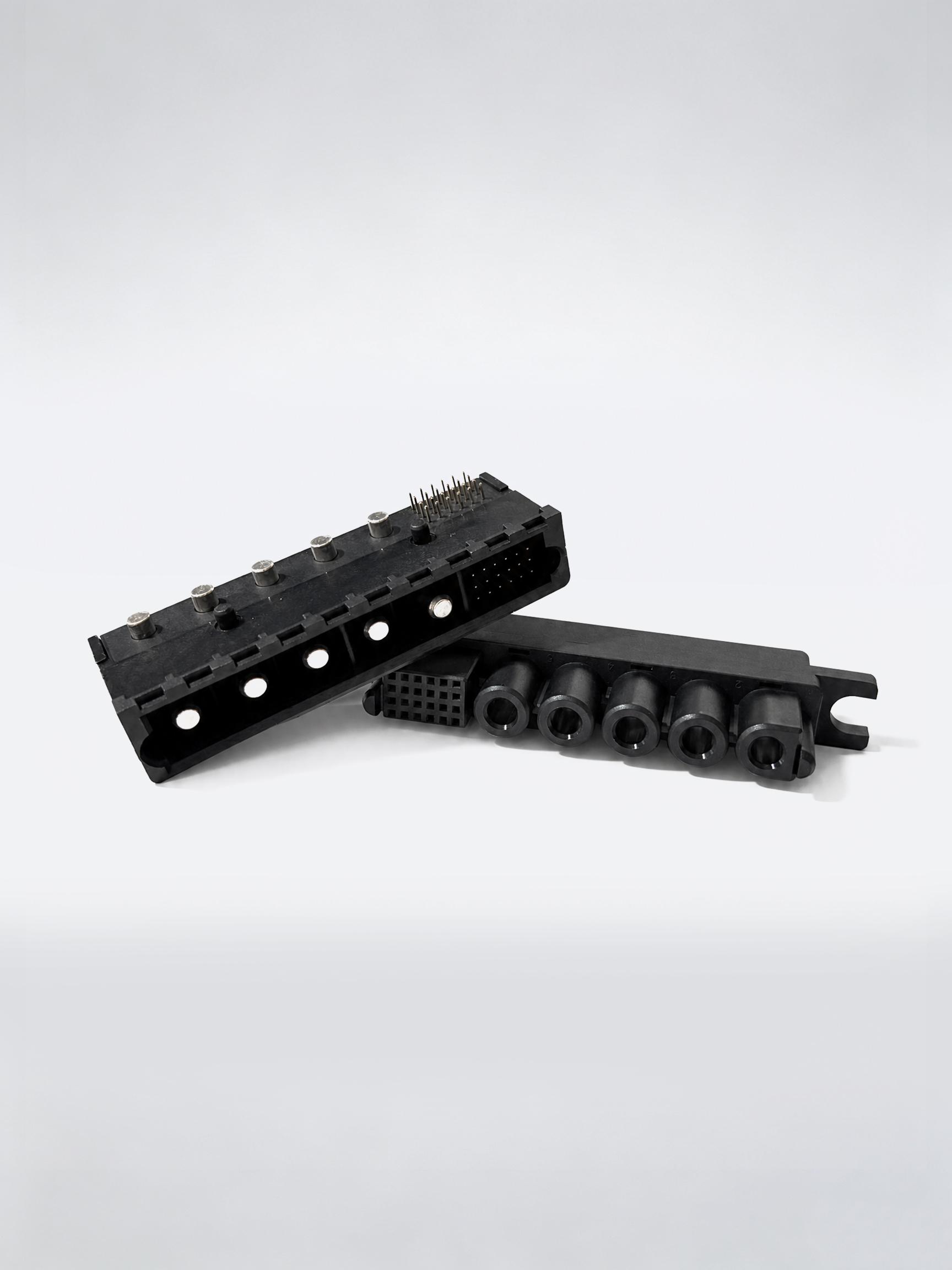

▶  5+24 Pins

▶  Rated Current: Power Pin:100A，Signal Pin: 2A

▶ Contact Resistance: Power Pin: ≤0.75mΩ，Signal Pin:≤15mΩ

▶ Insulation Resistance: ≥5000MΩ DC500V

▶ Dielectric Withstand Voltage: Power Pin: 3000V AC，Signal Pin:500V AC

▶  Mating Cycles: ≤100cycles

▶ Contact Separation Force (Single Pin): Power Pin:5～10N，Signal Pin:0.2～0.8N

WZ10050021-ZZ

WZ10020083-ZZ
